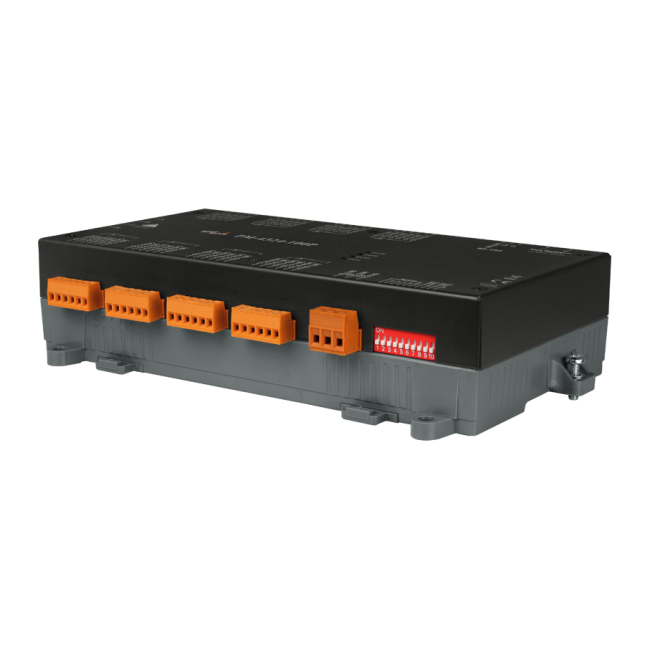

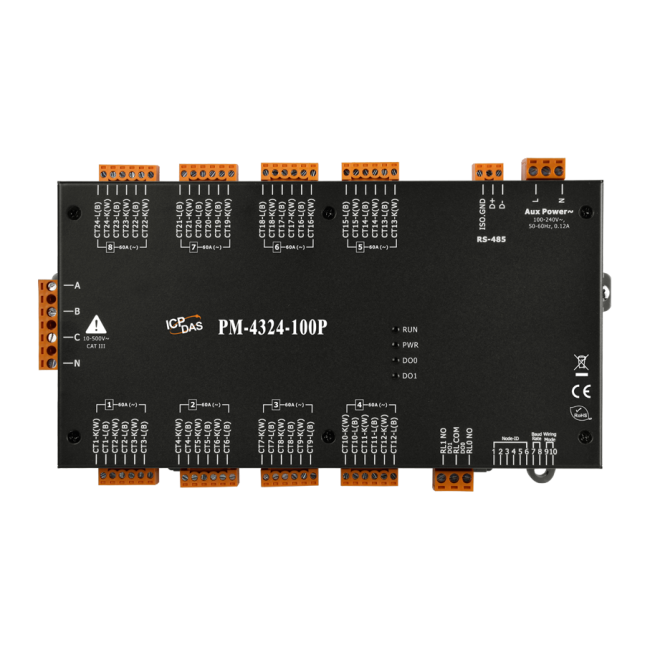

| Model |
PM-4324P |
PM-4324-MTCP |
PM-4324-CPS |
| AC Power Measurement |
| Wiring |
3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Input Voltage |
10 ~ 500 V |
| Input Current |
CTØ10 mm (60 A); CTØ16 mm (100 A); CTØ24 mm (200 A); CTØ36 mm (300 A); CTØ36 mm (400 A) |
| Input Frequency |
50/60 Hz |
| W Accuracy |
Better than 0.5% (PF=1) |
| Power Parameter Measurement |
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh),Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
| Data Update Rate |
1 Second |
| Communication |
| RS-485 |
Protocol |
Modbus-RTU |
- |
- |
| Baud rate |
9600,19200 (default), 38400, 115200;
DIP Switch Selectable |
- |
- |
| Data format |
N,8,1 (default); N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 |
- |
- |
| Isolation |
3000 VDC |
- |
- |
| Ethernet (PoE) |
Protocol |
- |
Modbus TCP |
- |
| CANopen |
Protocol |
- |
- |
CANopen |
| Baud rate |
- |
- |
125 k (default), 250 k, 500 k, 1 M;
DIP Switch Selectable |
| Isolation |
- |
- |
3000 VDC |
| Alarm Output |
| Power Relay |
Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63 Hz), 5 A @ 30 VDC |
| Power |
| Input Range |
+85 ~ +264 VAC |
| Power Consumption |
6 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (W x L x H) |
237 mm x 52 mm x 134 mm |
| Module Installation |
DIN-Rail Mounting; Wall mounting |

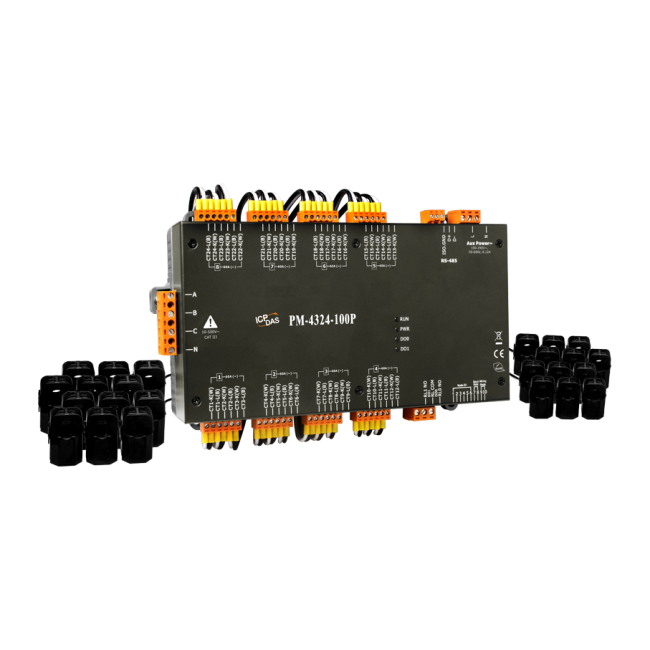

| CT Installation |
Clip-On |
| Environment |
| Operating Temperature |
-20 ~ +70 °C |
| Storage Temperature |
-25 ~ +80 °C |
| Ambient Relative Humidity |
10% ~ 90% RH, Non-condensing |
|
