| Models |

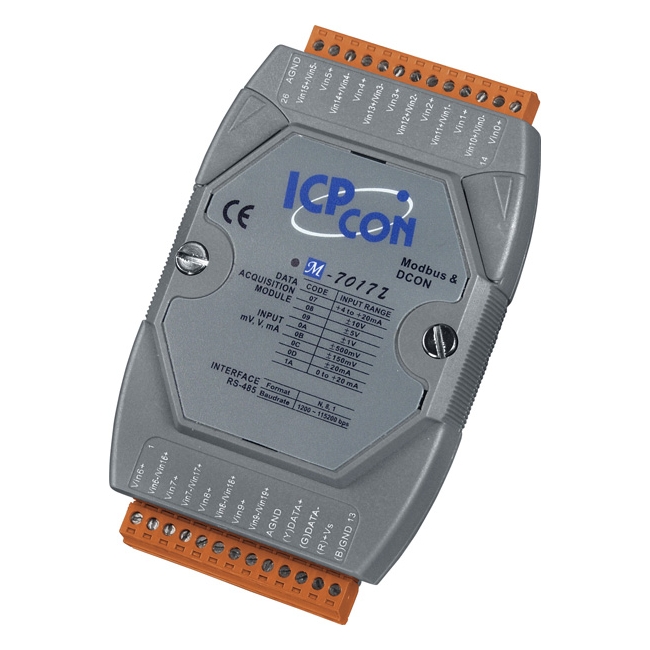

I-7017Z |
M-7017Z |
| Analog Input |
| Channels |
10/20 |
| Wiring |
10 Differential or 20 Single-ended (Software Selectable - see Note 1) |
| Sensor Types |
Voltage |
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V |
| Current |
±20 mA , 0 ~ +20 mA, +4 ~ +20 mA (Jumper Selectable) |
| Resolution |
16-bit |
| Accuracy |
Normal Mode |
±0.1% of FSR |
| Fast Mode |
±0.5% of FSR |
| Sampling Rate |
Normal Mode |
10 Hz |
| Fast Mode |
60 Hz |
| Input Impedance |
Voltage |
2 MΩ (Differential) |
| 1 MΩ (Single-ended) |
| Current |
125 Ω (Differential) |
| Common Voltage Protection |
±200 VDC |
| Individual Channel Configuration |
Yes |
| Overvoltage Protection |
240 Vrms |
| Overcurrent Protection |
Yes, 50 mA at 110 VDC |
| Temperature Output Consistency |
Yes, 400 VDC |
| Open Wire Detection for +4 ~ +20 mA |
Yes |
|
Note 1: Differential wiring can be used for both voltage input and current input.
Single-ended wiring can only be used for voltage input |
| |
 |
| Models |
I-7017Z |
M-7017Z |
| Communication |
| Interface |
RS-485 |
| Bias Resistor |
No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.) |
| Format |
N, 8, 1 |
| Baud Rate |
1200 to 115200 bps |
| Protocol |
DCON |
Modbus RTU, DCON |
| Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| LED Indicator/Display |
| System LED Indicator |
Yes, 1 as Power/Communication Indicator |
| I/O LED Indicator |
- |
| 7-Segment LED Display |
- |
| Isolation |
| Intra-Module Isolation, Field-to-Logic |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| Surge (IEC 61000-4-5) |
±0.5 kV for Power Line |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
2.0 W |
| Mechanical |
| Dimensions (L x W x H) |
123 mm x 72 mm x 35 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 to +75°C |
| Storage Temperature |
-40 to +85°C |
| Humidity |
10 to 95% RH, Non-condensing |
|
