GOT5840T-845



  產品型錄(PDF)


        特色
 > 8.4" SVGA TFT LCD display with LED backlight
 > Fanless cooling system with Intel® Celeron® processor
 > N3060 (up to 2.48 GHz)
 > Ultra slim and super light design
 > WLAN module and internal antenna
 > 2 PCI Express Mini Card slots

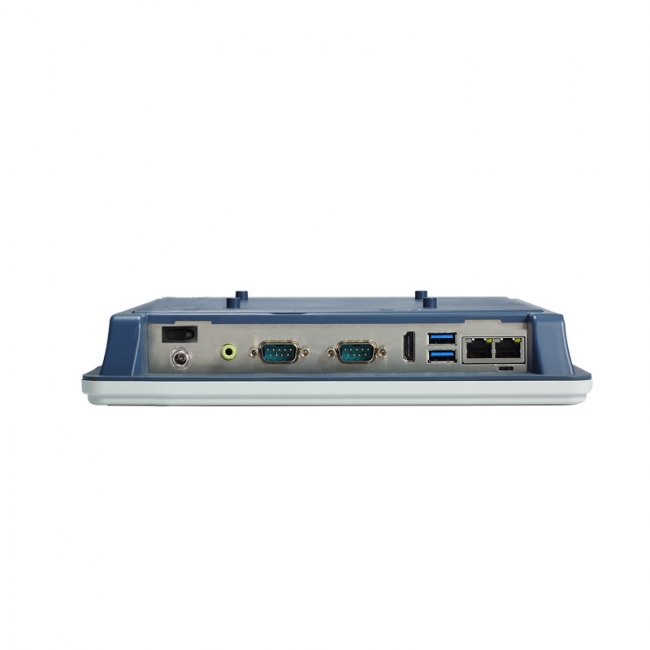

 > 2 GbE LAN, 2 USB and 2 COM
 > Supports optional panel mount/wall mount/VESA arm/desktop stand
 > Plastic and IP65-rated front bezel


       產品簡介

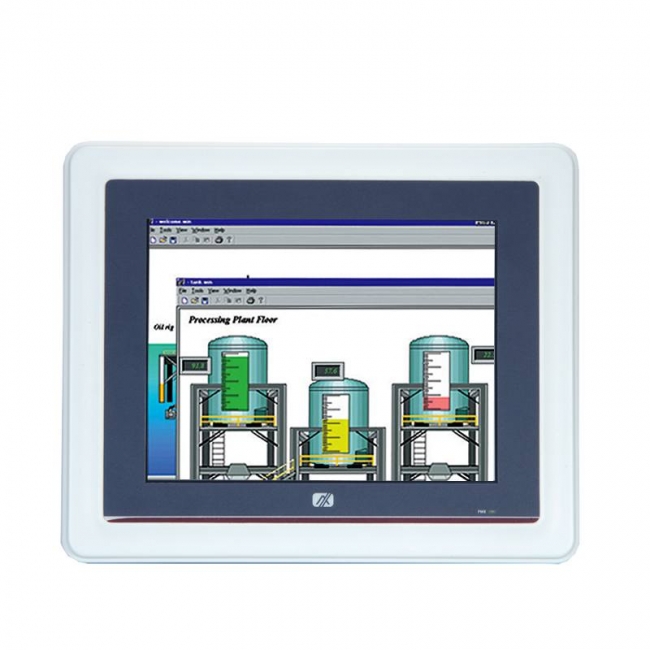

 The GOT5840T-845 is a budget-friendly 8.4-inch fanless touch panel PC with Intel® Celeron® processor N3060. This compact panel system adopts a SVGA color resolution 800 x 600 TFT LCD display with 350 nits brightness. Designed to meet various applications needs, it comes with rich I/O interfaces, and can withstand temperature ranges from 0°C to 50°C. Featuring a super slim and light housing with IP65-rated protection, the 8.4” GOT5840T-845 is suitable for use in shopping malls and supermarkets as a self-service kiosk, as a human machine interface in factory automation, healthcare facilities, and building automation applications.


       產品規格
LCD Panel
  • 8.4" SVGA TFT LCD with LED backlight
  • 350 nits
  • 800 x 600
CPU
  • Intel® Celeron® processor N3060 up to 2.48 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232/422/485 (default RS-232)
USB
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i211AT)
Display
  • 1 x HDMI
Audio
  • 1 x Audio (Line-out)
Storage
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA
  • 1 x Full-size PCI Express Mini Card slot with SIM
Others
  • 1 x Switch for power On/Off
  • 1 x AT/ATX mode selection switch
Touchscreen
  • Resistive type
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply
  • AC version: 100 - 240VAC-DC, 60W power adapter or
  • DC version: 9 - 36 VDC with over current protection fuse
Power Comsumption
  • 25W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • 0° to +50°C (+32°F to +122°F) (with W.T. DRAM/HDD in airflow condition)
  • 0° to +45°C (+32°F to +113°F) (with W.T. DRAM)
Relative Humidity
  • 20% - 90% @ +40°C; non-condensing
Vibration
  • 2G, 5 - 500Hz, random for mSATA
Dimensions
(W x D x H)
  • 250.7 x 45.8 x 204.7 mm (9.87" x 1.80" x 8.06")
Weight (net/gross)
  • 1.3 kg (2.87 lb)/ 2.25 kg (4.96 lb)
Certifications
  • CE, FCC, UL60950-1
EOS
  • WES 7, Windows® 7, WE8S (64-bit), Windows® 8.1 (64-bit), Windows® 10
Mounting
  • Panel mount
  • Wall mount
  • VESA arm
  • Desktop stand
