ICO100-839


 產品型錄(PDF)

       特色
 > Extreme cost-effective with fanless and cableless design
 > Intel® Celeron® processor N3350
 > 2 COM, 2 USB and GbE LAN
 > 8-bit programmable DIO for IoT gateway applications
 > Wide operating temperature range from -40°C to +70°C
 > 12 to 24 VDC wide range power input
 > OVP, UVP, OCP, RPP power protection design
 > AMS.AXView intelligent remote monitoring software for IIoT


       產品簡介

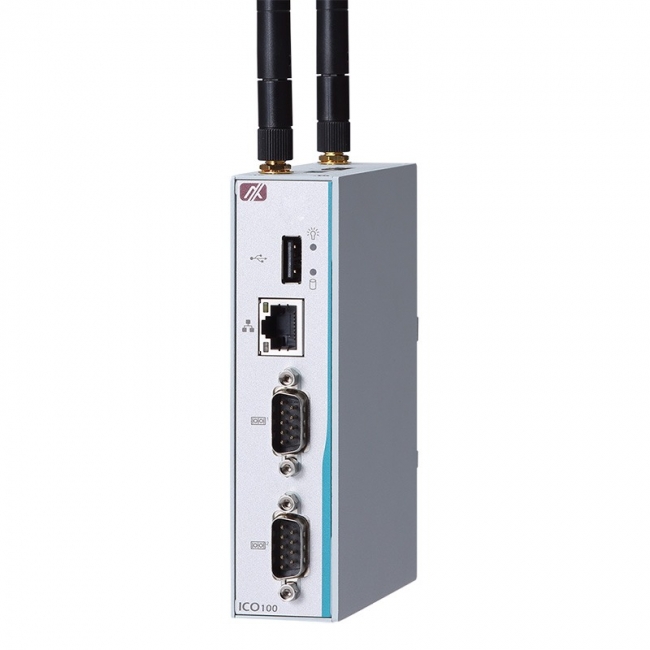

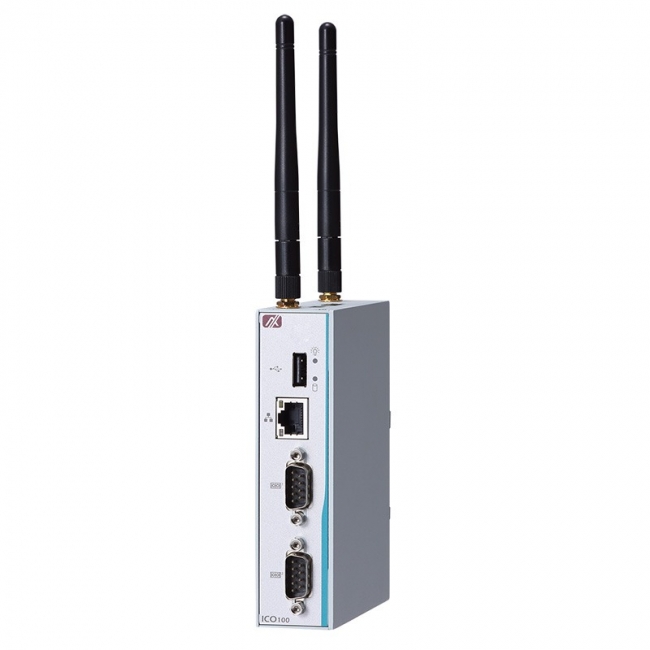

 ​The ICO100-839 is a DIN-rail fanless embedded system designed to support the low-power Intel® Celeron® processor N3350. This DIN-rail industrial IoT gateway supports one DDR3L SO-DIMM slot with up to 8 GB system memory. Its proven rugged construction ensures reliable operation in harsh environments with an extended temperature range of -20°C to 70°C and anti-vibration up to 2G. Additionally, the wide range 12V-24V DC power input with a lockable terminal block type connector is suitable for industrial automation fields. The overvoltage and reverse protection lowers the risk of crucial data loss. The outstanding Intel® Atom™-based ICO100-839 is a perfect solution for industrial IoT applications such as smart factory automation and smart energy. The DIN-rail industrial IoT gateway offers an outstanding price/performance ratio with good quality. It comes with sufficient I/O connectivity while measuring only 31 x 100 x 125 mm. The I/O interfaces include two RS-232/422/485 ports, two USB 2.0 ports, one Gigabit Ethernet, one VGA and one DIO. Furthermore, the Intel® Apollo Lake-based ICO100-839 is equipped with two PCI Express Mini Card slots, one for mSATA storage card and another for 3G/GPRS/Wi-Fi connections.


       產品規格
CPU
  • Intel® Celeron® processor N3350 (1.1 GHz, Dual Core)
Chipset
  • SoC integrated
System Memory
  • 1 x SO-DIMM DDR3L-1866, up to 8 GB
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps
  • (Intel® i211-AT for ICO100)
    (Intel® i210-IT for ICO100-WT)
    Magnetic isolation protection 1.5KV
PoE
  • N/A
CANbus
  • N/A
Digital I/O
  • 1 x DI/DO (8-bit programmable, DB9 female connector)
Analog Input
  • N/A

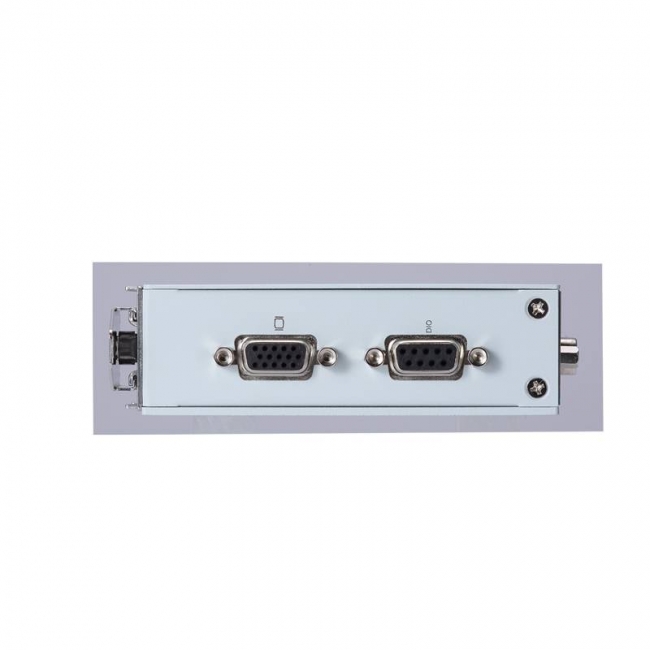

Display
  • 1 x VGA
Wireless
  • 1 x Full-size PCI Express Mini Card slot with SIM slot (for wireless module)
  • 1 x Full-size PCI Express Mini Card slot with mSATA (for wireless module or mSATA)
Storage
  • mSATA shared with PCI Express Mini Card slot (option eMMC flash onboard)
Others

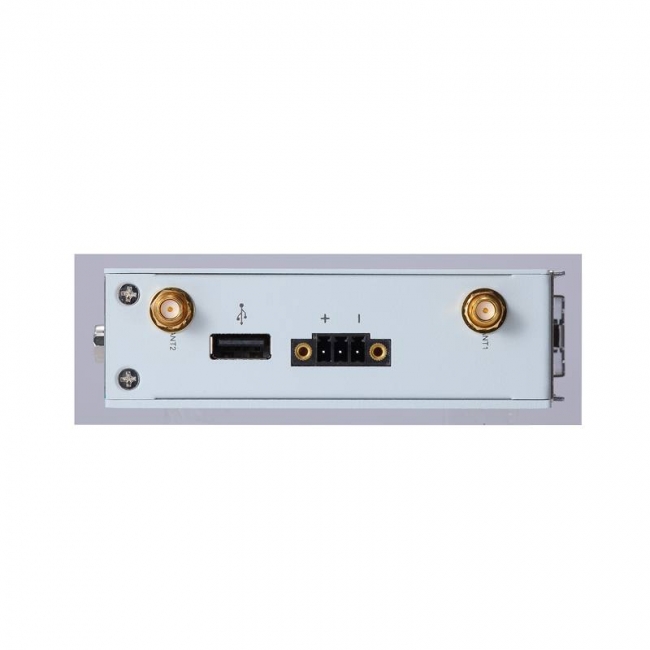

  • 1 x DC power input with terminal block
Power Supply
  • Power Input Range: 12 to 24 VDC, 1.15 to 0.62A (13.80 to 14.88W)
  • Protection: OVP (±20%), reverse protection
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP40
Operating Temperature
  • -20°C to +70°C (-4°F to +158°F)
  • -40°C to +70°C (-40°F to +158°F) (ICO100-WT)
Relative Humidity
  • 10% to 95%
Vibration
  • 2 Gms (5 to 500Hz, amplitude 0.35 mm; operation/storage/transport)
Dimensions
(W x D x H)
  • 31 x 100 x 125 mm (1.22" x 3.93" x 4.92")
Weight (net/gross)
  • 0.3 kg (0.67 lb)/0.46 kg (1 lb)
Certifications
  • CE
  • FCC Class A
EOS Support
  • Windows® 10 IoT, Linux support package (by request)
Software Support
  • AMS.AXView

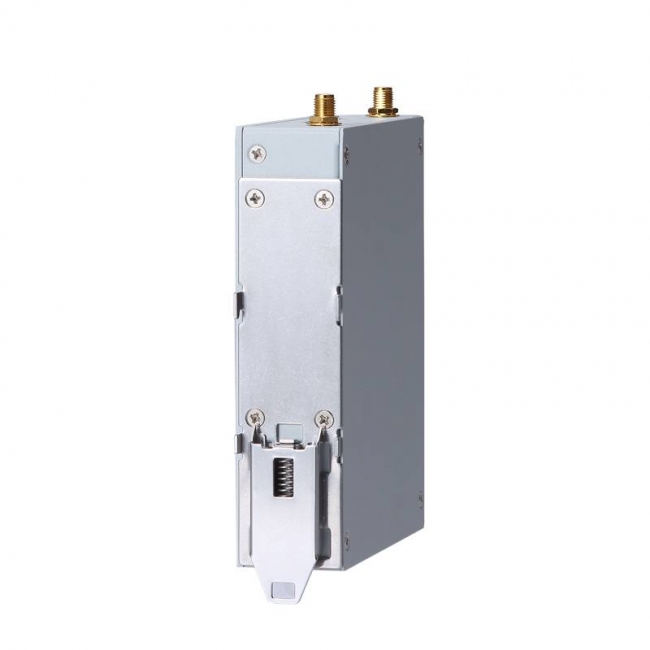

Mounting
  • DIN-rail
  • Wall Mounting
