eBOX560-880-FL



     產品型錄(PDF)


           特色
 > Intel® Celeron® 2980U/Core™ i5-4300U Haswell & Core™ i3-5010U Broadwell ULT SoC
 > 204-pin DDR3L-1600 SO-DIMM, up to 8GB
 > Fanless operation design with compact size
 > 1 RS-232/422/485 and 1 RS-232 port
 > One 2.5” 9.5mm SATA HDD drive bay and mSATA interface
 > 1 PCI Express Mini Card slot and 4 USB 3.0 ports
 > DisplayPort and HDMI with dual-view supported


      產品簡介

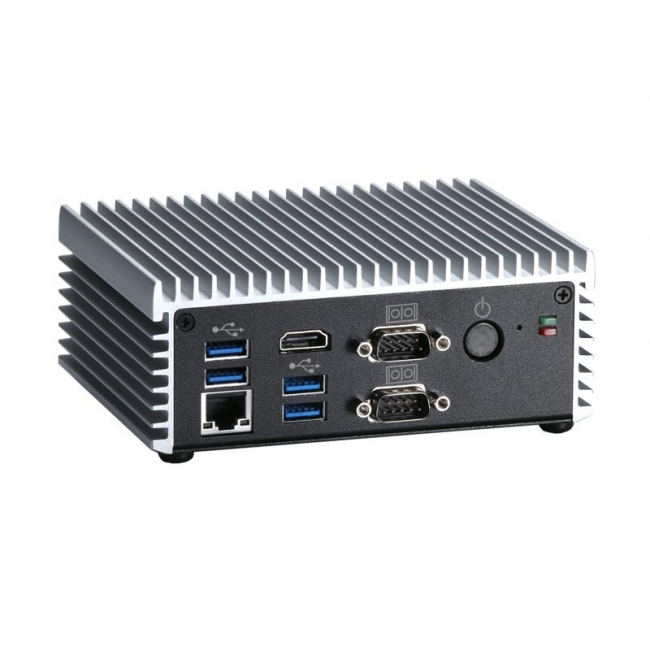

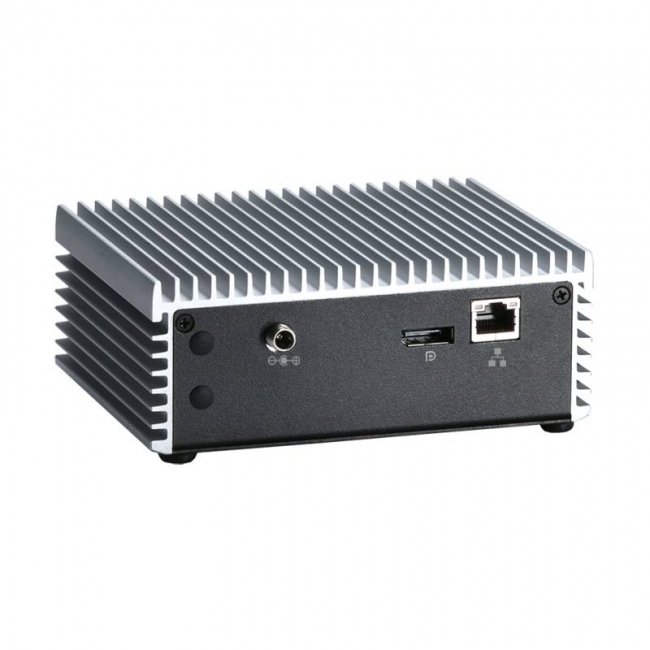

 The eBOX560-880-FL, a palm-sized, fanless embedded computing system utilizes high performance Intel® Haswell ULT multi-core SoC. The ultra-compact, ultra-lightweight eBOX560-880-FL adopts an IP40-rated rugged aluminum cold-rolled steel enclosure to withstand vibration of up to 3 Grms (with SSD) and has a unique thermal solution to support the temperature range from -20°C to +50°C (-4°F to +122°F). Supporting 4K2K resolution via HDMI interface, the outstanding embedded box computer is ideal for passenger information system, Kiosk, entry-level gaming, video surveillance, and other automation & embedded applications.



           產品規格
CPU
  • Intel® Celeron® 2980U 1.6 GHz/ Intel® Core™ i5-4300U 1.9 GHz/ Intel® Core™ i3-5010U 2.1 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8 GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 4 x USB 3.0
Ethernet/PoE
  • 2 x 10/100/1000 Mbps (Intel® i218LM, i210AT)
Display
  • 1 x DisplayPort
  • 1 x HDMI
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SATA HDD
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card (USB + PCI Express signal)
Others
  • 2 x SMA type connector opening for antenna
  • 1 x VDC 12V power input connector
  • 1 x ATX power switch
  • 1 x Reset button
Power Supply
  • Input AC 90-264V, AC 60W adapter with lock
  • Output: DC 12V @ 5A
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -20°C ~ +50°C (-4°F~+122°F) (w/ W.T. SSD)
Relative Humidity
  • 10% ~ 90% , non-condensing
Vibration
  • 3 Grms w/ SSD™ (5-500Hz, X, Y, Z directions)
Shock
Dimensions
(W x D x H)
  • 141.5 x 106 x 55 mm (5.57" x 4.17" x 2.17")
Weight (net/gross)
  • 0.8 kg (1.76lb)/ 1.5kg (3.31lb)
Certifications
  • CE
EOS Support
  • WES8, WES7, Linux
Software Support
Mounting
  • Wall mount
  • DIN-rail
  • VESA mount
