8點數位輸入輸出 I-7055(D)/M-7055(D)/I-7055(D)-NPN/M-7055(D)-NPN

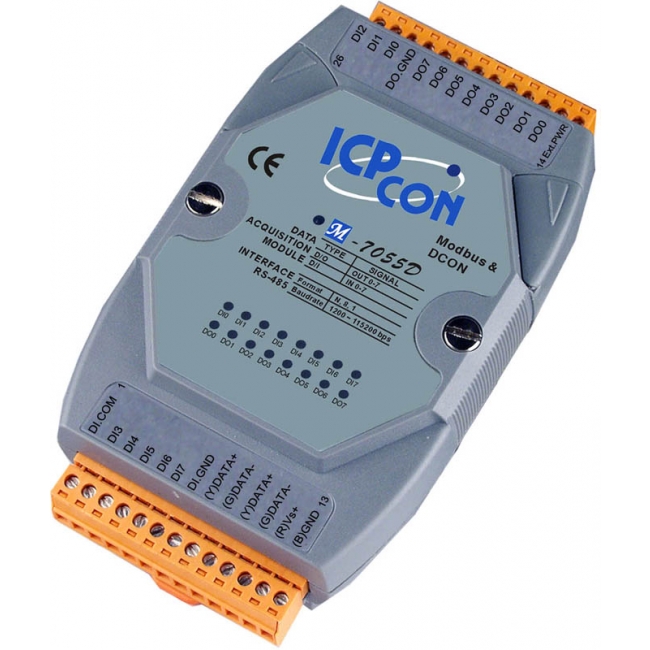

M-7055D-G


 產品型錄(PDF)


Models I-7055 I-7055D I-7055-NPN I-7055D-NPN
M-7055 M-7055D M-7055-NPN M-7055D-NPN
Digital Input/Counter
Channels 8
Type Dry Contact Source
Wet Contact Sink/Source
Wet Contact On Voltage Level +10 ~ 50 VDC
Off Voltage Level +4 VDC Max.
Dry Contact On Voltage Level Close to GND
Off Voltage Level Open
Effective Distance
for Dry Contact		 500 m Max.
Counters Max. Count 65535 (16-bit)
Max. Input
Frequency		 100 Hz
Min. Pulse Width 5 ms
Input Impedance 10 KΩ
Channel-to-Channel Isolation -
Overvoltage Protection ±70 VDC
Digital Output
Channels 8
Type Open Source Open Collector
Sink/Source (NPN/PNP) Source Sink
Load Voltage +10 ~ 40 VDC +3.5 ~ 50 VDC
Max. Load Current 650 mA/Channel 700 mA/Channel
Overvoltage Protection 47 VDC 60 VDC
Overload Protection 1.4 A (with short-circuit protection)
Power-on Value Yes
Safe Value Yes

Models I-7055 I-7055D I-7055-NPN I-7055D-NPN
M-7055 M-7055D M-7055-NPN M-7055D-NPN
Communication
Interface RS-485
RS-485 Bias Resistor No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.)
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
Protocol DCON (for I-7055 series)
Modbus RTU, DCON (for M-7055 series)
Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicator/Display
System LED Indicator Yes, 1 LED as Power/Communication Indicator
I/O LED Indicator - Yes, 8 LEDs as Digital Input
& 8 LED as Digital Output Indicators		 - Yes, 8 LEDs as Digital Input
& 8 LED as Digital Output Indicators
7-Segment LED Display -
Isolation
Intra-Module Isolation, Field-to-Logic 3750 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
±8 kV Air for Random Point
EFT (IEC 61000-4-4) ±4 kV for Power Line
Surge (IEC 61000-4-5) ±3 kV for Power Line
Power
Reverse Polarity Protection Yes
Input Range 10 ~ 30 VDC
Consumption 0.8 W 1.6 W 1.2 W 2.2 W
Mechanical
Dimensions (W x L x H) 72 mm x 123 mm x 35 mm
Installation DIN-Rail or Wall Mounting
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -40 ~ +85°C
Humidity 10 ~ 95% RH, Non-condensing

Models I-7055 I-7055D I-7055-NPN I-7055D-NPN
M-7055 M-7055D M-7055-NPN M-7055D-NPN
Digital Input/Counter
Channels 8
Type Dry Contact Source
Wet Contact Sink/Source
Wet Contact On Voltage Level +10 ~ 50 VDC
Off Voltage Level +4 VDC Max.
Dry Contact On Voltage Level Close to GND
Off Voltage Level Open
Effective Distance
for Dry Contact		 500 m Max.
Counters Max. Count 65535 (16-bit)
Max. Input
Frequency		 100 Hz
Min. Pulse Width 5 ms
Input Impedance 10 KΩ
Channel-to-Channel Isolation -
Overvoltage Protection ±70 VDC
Digital Output
Channels 8
Type Open Source Open Collector
Sink/Source (NPN/PNP) Source Sink
Load Voltage +10 ~ 40 VDC +3.5 ~ 50 VDC
Max. Load Current 650 mA/Channel 700 mA/Channel
Overvoltage Protection 47 VDC 60 VDC
Overload Protection 1.4 A (with short-circuit protection)
Power-on Value Yes
Safe Value Yes

Models I-7055 I-7055D I-7055-NPN I-7055D-NPN
M-7055 M-7055D M-7055-NPN M-7055D-NPN
Communication
Interface RS-485
RS-485 Bias Resistor No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.)
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
Protocol DCON (for I-7055 series)
Modbus RTU, DCON (for M-7055 series)
Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicator/Display
System LED Indicator Yes, 1 LED as Power/Communication Indicator
I/O LED Indicator - Yes, 8 LEDs as Digital Input
& 8 LED as Digital Output Indicators		 - Yes, 8 LEDs as Digital Input
& 8 LED as Digital Output Indicators
7-Segment LED Display -
Isolation
Intra-Module Isolation, Field-to-Logic 3750 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
±8 kV Air for Random Point
EFT (IEC 61000-4-4) ±4 kV for Power Line
Surge (IEC 61000-4-5) ±3 kV for Power Line
Power
Reverse Polarity Protection Yes
Input Range 10 ~ 30 VDC
Consumption 0.8 W 1.6 W 1.2 W 2.2 W
Mechanical
Dimensions (W x L x H) 72 mm x 123 mm x 35 mm
Installation DIN-Rail or Wall Mounting
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -40 ~ +85°C
Humidity 10 ~ 95% RH, Non-condensing
