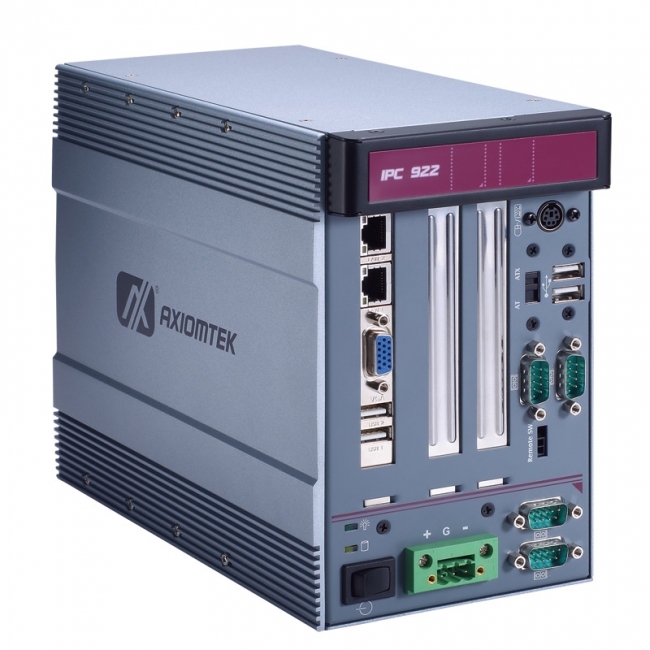

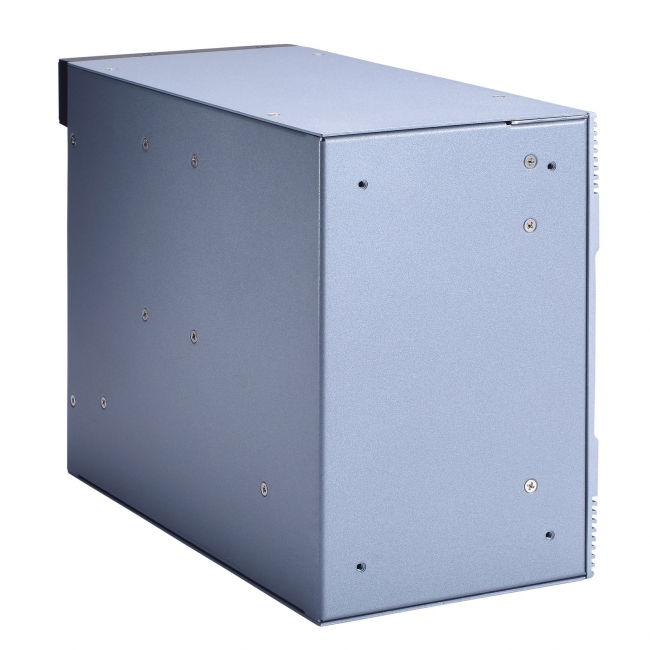

IPC922-215-FL

IPC922-215-FL
IPC922-215-FL


   產品型錄(PDF)

        特色

  • Intel® Celeron® processor J1900 (up to 2.42 GHz)
  • Fanless & ventilation-free
  • Supports 2 expansion slots
  • 10 - 30 VDC to DC power supply
  • Compact & front I/O design
        產品簡介
  The IPC922-215-FL is an energy-efficient fanless 2-slot industrial system with rugged mechanism and optimized expandability. The extreme compact IP30-rated IPC922-215-FL utilizes an onboard Intel® Celeron® quad core processor J1900 2.42GHz with one DDR3L 1333 up to 8 GB memory. To fulfill difference application needs, the rugged Intel® Bay Trail SoC barebone embedded system provides great expansion capability with two flexible PCI/PCIe slots that can be customized. Additionally, the Axiomtek IPC922-215-FL can withstand temperatures ranging from -10°C to 50°C, and is equipped with a wide range 10 ~ 30 VDC power input for industrial application.

        產品規格

CPU
  • Intel® Celeron® J1900 processor 2.42 GHz
Chipset
  • SoC Integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333, up to 8 GB
BIOS
  • AMI
COM
  • 4 x RS-232/422/485
USB
  • 4 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps
Display
  • 1 x VGA
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SATA HDD
  • 1 x onboard CFast™ socket
Expansion
  • HAB108: 2 PCI
  • HAB103: 1 PCI & 1 PCIe x4 (PCIe x4 slot only supports PCIe x1 signal)
Others
  • 1 x Remote switch
  • 1 x Power on/off switch
  • 1 x ATX/AT mode SW
  • 1 x PS/2 key broad and mouse
Power Supply
  • DC ATX 120W:
    Input: 10 - 30 VDC
    Output: +5V @ 6A, +3.3V @ 5A, +12V @ 5A, -12V @ 0.1A, 5Vsb @ 2.5A
Construction
  • Aluminum extrusion heavy-duty cold-rolled steel
Operating Temperature
  • -10°C ~ +50°C (14°F ~ 122°F)
Relative Humidity
  • 10% ~ 90%, non-condensing
Dimensions
(W x D x H)
  • 118 x 248 x 185 mm (4.6" x 9.8" x 7.3")
Weight (net/gross)
  • 4.22 kg (9.28 lb)/5.3 kg (11.68 lb)
Certificate
  • CE
