特色及優點
- 體積精巧，易安裝
- 支援 Windows 和 Linux 的 Real COM/TTY 驅動程式
- 標準的 TCP/IP 介面和多樣化的作業模式
- 方便使用的 Windows 公用程式，可設定多台設備連網伺服器
- 所有串列訊號皆內建 15 KV ESD 靜電保護
- SNMP MIB-II 網路監控
- 支援網頁畫面或 Telnet 軟體進行設定
- 可調整式終端電阻器，供RS-485埠用
- 透過MXview Plug-in 支援Moxa的 MXview 工業連網管理軟體
簡 介

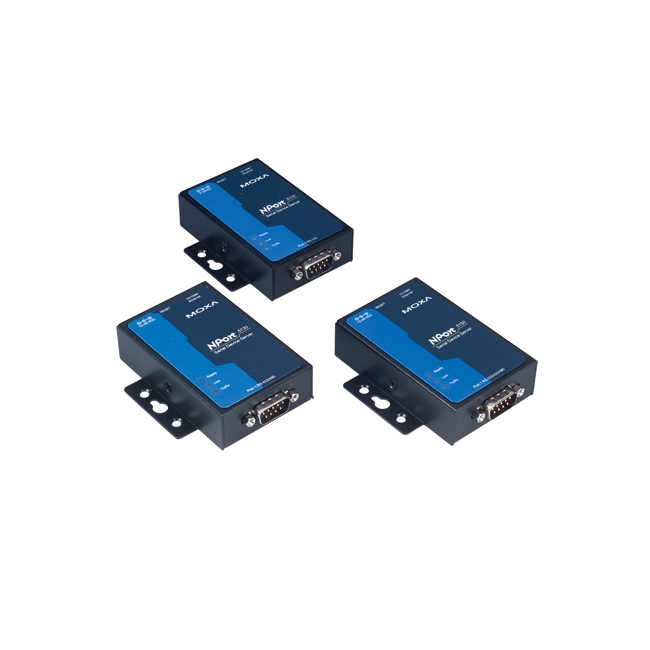

NPort 5100 設備連網伺服器的設計可迅速且輕鬆地完成串列裝置網路的設定。伺服器的小巧體積成為讀卡機和付款終端等裝置連接到乙太網路 IP LAN 的最佳選擇。NPort 5100 設備連網伺服器可藉由電腦軟體從網路上的任何位置直接存取串列裝置。
規 格
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV built-in |
| • Serial Interface | |
| Number of Ports | 1 |
| Serial Standards | NPort 5110: RS-232 NPort 5130: RS-422/485 NPort 5150: RS-232/422/485 |
| Connector | DB9 male |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate |
NPort 5110: 50 bps to 230.4 kbps (Supports standard baudrates) |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, ARP, HTTP, SMTP |
| Configuration Options | Web Console, Serial Console (NPort 5110/5150 only), Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x, 4.x |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | 340 g (0.75 lb) |
| Dimensions | Without ears: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in) With ears: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | NPort 5110: 128.7 mA @ 12 VDC NPort 5130/5150: 200 mA @ 12 VDC |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs |
| • Reliability | |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | NPort 5110: 3,126,448 hrs NPort 5130: 2,836,863 hrs NPort 5150: 2,736,202 hrs |
| Standard | Telcordia (Bellcore) Standard TR/SR |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
可選型號
| Model No. | Description |
|---|
| NPort 5110 | 1-port RS-232 device server, 0 to 55°C operating temperature | |
| NPort 5110-T | 1-port RS-232 device server, -40 to 75°C operating temperature | |
| NPort 5130 | 1-port RS-422/485 device server, 0 to 55°C operating temperature | |
| NPort 5150 | 1-port RS-232/422/485 device server, 0 to 55°C operating temperature |
