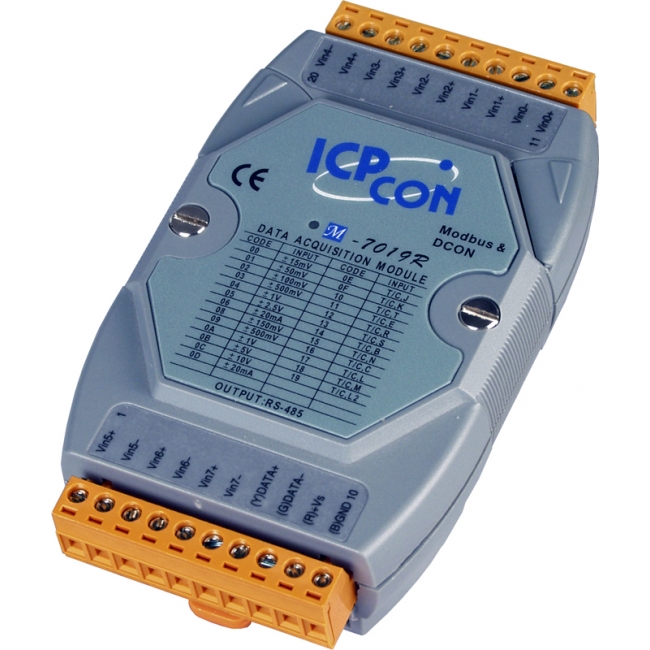

特色說明：
可透過指撥開關將每個通道個別設定為電壓、電流或是溫度Thermocouple三種型態，彈性度大。
 |
| Models |
I-7019R |
M-7019R |
| Analog Input |
| Channels |
8 |
| Wiring |
Differential |
| Sensor Types |
Thermocouple |
J, K, T, E, R, S, B, N, C, L, M, LDIN43710 |
| Voltage |
±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V |
| Current |
±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (Jumper selectable) |
| Resolution |
16-bit |
| Accuracy |
±0.1% of FSR |
| Sampling Rate |
8 Hz (Total) |
| Input Impedance |
Voltage |
2 MΩ |
| Current |
125 Ω |
| Thermocouple |
> 400 kΩ |
| Common Voltage Protection |
±200 VDC |
| Individual Channel Configuration |
Yes |
| Overvoltage Protection |
240 Vrms |
| Open Wire Detection (for thermocouple only) |
Yes |
| Temperature Outputs onsistency |
- |
| Stable Temperature Output in the Field |
- |
|
| Note: For highly-accurate thermocouple measurement, ICP DAS recommends selecting the I-7018Z/I-7019Z module,which features automatic cold-junction compensation for each channel, ensuring consistent and stable temperature output. |
| |
 |
| Models |
I-7019R |
M-7019R |
| Communication |
| Interface |
RS-485 |
| Bias Resistor |
No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.) |
| Format |
(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
| Baud Rate |
1200 to 115200 bps |
| Protocol |
DCON |
Modbus RTU, DCON |
| Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| LED Indicator/Display |
| System LED Indicator |
Yes, 1 as Power/Communication Indicator |
| I/O LED Indicator |
- |
| 7-Segment LED Display |
- |
| Isolation |
| Intra-Module Isolation, Field-to-Logic |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV |
| EFT (IEC 61000-4-4) |
±4 kV |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.2 W |
| Mechanical |
| Dimensions (L x W x H) |
123 mm x 72 mm x 35 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 to +75°C |
| Storage Temperature |
-40 to +85°C |
| Humidity |
10 to 95% RH, Non-condensing |
|
