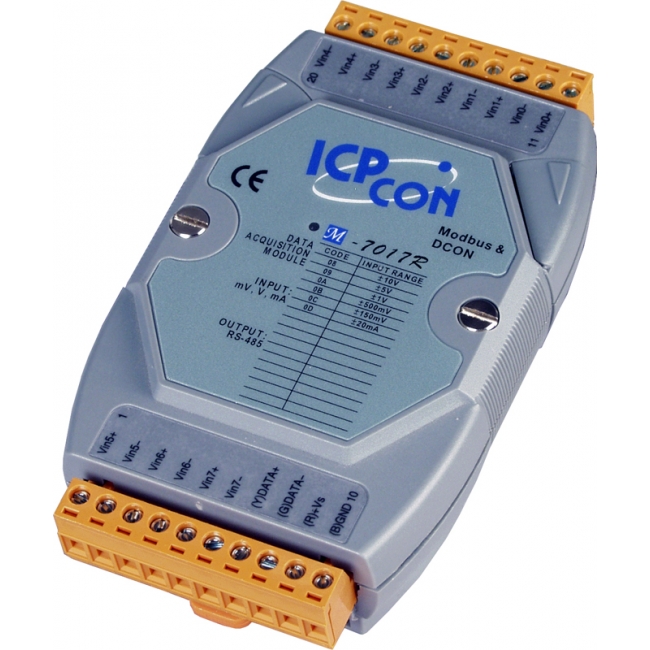

8點類比輸入M-7017R

產品型錄(PDF)

Model		I-7017R	I-7017R-A5
		M-7017R	M-7017R-A5
Analog Input
Channels		8
Wiring		Differential
Input Range		±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires an optional external 125 Ω resistor)	±50 V, ±150 V
Resolution		16-bit	16-bit
Accuracy	Normal Mode	0.1%
	Fast Mode	0.5 %
Sampling Rate	Normal Mode	10 Hz
	Fast Mode	60 Hz	50 Hz
Input Impedance	Voltage	20 MΩ	290 kΩ
	Current	-
Common Voltage Protection		±200 VDC
Individual Channel Configuration		-
Overvoltage Protection		240 Vrms	±200 VDC
Overcurrent Protection		-
Open Wire Detection for 4 ~ 20 mA		Yes

Model	I-7017R	I-7017R-A5
	M-7017R	M-7017R-A5
Communication
Interface	RS-485
Format	(N, 8, 1)
Baud Rate	1200 ~ 115200 bps
Protocol	DCON (For I-7017R series)
	Modbus RTU, DCON (For M-7017R series)
Dual Watchdog	Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicator/Display
System LED Indicator	Yes, 1 LED as Power/Communication Indicator
I/O LED Indicator	-
7-Segment LED Display	-
Isolation
Intra-Module Isolation, Field-to-Logic	3000 VDC
EMS Protection
ESD (IEC 61000-4-2)	±4 kV Contact for each Terminal
EFT (IEC 61000-4-4)	±4 kV to Power Line
Surge (IEC 61000-4-5)	±0.5 kV for Power Line
Power
Reverse Polarity Protection	Yes
Input Range	10 ~ 30 VDC
Consumption	1.3 W	1.6 W
Mechanical
Dimensions (W x L x H)	72 mm x 123 mm x 35 mm
Installation	DIN-Rail or Wall Mounting
Environment
Operating Temperature	-25 ~ +75°C
Storage Temperature	-40 ~ +85°C
Humidity	10 ~ 95% RH, Non-condensing
